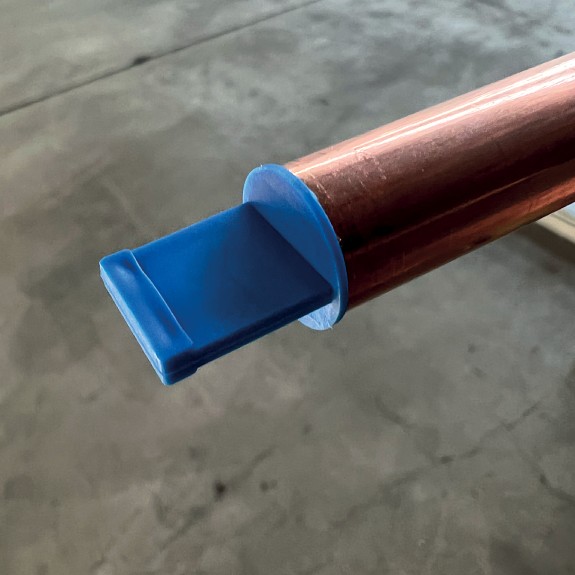

MEDICAL, the ideal choice for plants for the distribution of medical gases and vacuum systems.
Characteristics
The MEDICAL copper tube is manufactured according to the most modern technologies on the current world market, in observance of European standard EN 13348, compatible with equipment manufactured in accordance with the Medical Device Directive 93/42/EEC and the result of scientific studies and tests that guarantee the maximum compatibility for distributing the following gases and systems:
- oxygen, nitrous oxide, nitrogen, helium, carbon dioxide, xenon;
- air for breathing;
- specific mixtures of these gases mentioned above;
- air for operating surgical instruments;
- anaesthetic gases and vapours;
- vacuum.
The inner surface meets the requirements of reference standard and is also free from incompatible materials with medical gases.
*The inner surface meets the requirements of reference standard and is also free from incompatible materials with medical gases.
Technical sheets
| Alloy | Cu-DHP CW024A (Cu = 99,90% min. - P = 0,015 ÷ 0,040%) | ||
| Physical state according to EN 13348 | Annealed R220 | Half-Hard R250 | Hard R290 |
| Unit tensile strength - R min. | 220 N/mm2 | 250 N/mm2 | 290 N/mm2 |
| Percentage elongation – A min. | 40% | 20% o 30% | 3% |
| Total carbon | C ≤ 0,20 mg/dm2 max. according to standard EN 13348 | ||
| Marking on tube | SILMET MEDICAL EN 13348 Ø X sp. Year quarter | ||
| Dimensions and tolerance | In compliance with standard EN 13348 | ||
| Internal surface roughness | RA - 1/10 di micron | ||
| Linear thermal expansion coefficient | 0,00168 mm/m °C | ||
| Thermal conductivity at 20° | 364 W/m · K | ||
1 The symbol III is present only in the half-hard physical state.
| external nominal diameter d | nominal thickness e mm | ||||||||||
| mm | 0,6 | 0,7 | 0,8 | 0,9 | 1 | 1,2 | 1,5 | 2 | 2,5 | 3 | |
| 6 | RV | ||||||||||
| 8 | RV | RV | |||||||||
| 10 | V | RV | RV | ||||||||
| 12 | V | RV | RV | ||||||||
| 14 | RV | ||||||||||
| 15 | RV | RV | |||||||||
| 18 | RV | ||||||||||
| 22 | RV | RV | RV | ||||||||
| 28 | V | V | V | ||||||||
| 32 | V | ||||||||||
| 35 | V | V | V | ||||||||
| 42 | V | V | V | ||||||||
| 54 | V | V | V | V | |||||||
| 64 | V | ||||||||||
| 66,7 | |||||||||||
| 76,1 | V | V | |||||||||
| 88,9 | V | ||||||||||
| 108 | V | V | |||||||||
| 133 | V | ||||||||||
R tubes in coils
V tubes in straight lengths
